Production Program

The production program of TAJMAC-ZPS is composed of Swiss-type lathes and multispindle automatic lathes, mechanical and CNC. These machines are used in the most demanding industries in all markets around the world and have gained a very good reputation with their high-level technical parameters, accuracy and reliability.

Multispindle Automatic Lathes MORI-SAY

Mechanical machines of AC series
Traditional concept of cam-controlled turning lathes for large-lot and mass production. The basic configuration is with 6 or 8 spindles, with controlled motors of spindle drives and feeds.
Numerically controlled machines of TMZ series
Fully CNC controlled machines in 5, 6 and 8 spindles configuration. Suitable for serial production of technologically highly demanding workpieces.

Swiss-type Lathes MANURHIN K’MX

We introduce a highly productive Swiss-type Lathes for manufacturing of round bars up to diameter of 32 mm (36 mm) as well as square and hexagon bars. These automatic lathes with sliding headstock expanded the production program of TAJMAC-ZPS a. s. after MANURHIN K’MX acquisition in 2004 and transfer of production from French Mulhouse into the city of Zlín.

  • More powerful turning!
  • More powerful milling!
  • Higher productivity!
Multispindle automatic Lathes MORI-SAY 620AC
  • No. of spindles: 6
  • Max. diameter of bar:20 mm
  • Max. length of feeding: 100 mm
  • Spindle speed: max 6000 rpm
More informations

Basic configuration with 6 transversal, 6 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for spindles stop - the 620SAC configuration, possibility of machining diameters up to 20mm.

mori-say 620AC
Multispindle automatic Lathes MORI-SAY 632AC 642AC
  • No. of spindles: 6
  • Max. diameter of bar: 32 /42 mm
  • Max. length of feeding: 125 mm
  • Spindle speed: max 4250 rpm
More informations

Basic configuration with 6 transversal, 6 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for machining of 42 mm maximal diameter - the 642AC configuration, both models can be modified for spindles stop - the 632SAC and 642SAC configuration.

mori-say 632AC
Multispindle automatic Lathes MORI-SAY 657AC, 667AC
  • No. of spindles: 6
  • Max. diameter of bar: 57 /67 mm
  • Max. length of feeding: 160 mm
  • Spindle speed: max 3200 rpm
More informations

Basic configuration with 6 transversal, 6 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for machining of 67 mm diameters - the 667AC configuration, the 657AC model can be modified for spindles stop - the 657SAC configuration.

mori-say 657AC
Multispindle automatic Lathes MORI-SAY 832AC, 842AC
  • No. of spindles: 8
  • Max. diameter of bar: 32 /42 mm
  • Max. length of feeding: 125 mm
  • Spindle speed: max 3750 rpm
More informations

Basic configuration with 8 transversal, 8 longitudinal saddles and 4 cross saddles, Siemens SINAMICS S120 motors with continuous regulation, possibility of machine modification for machining of 42 mm maximal diameter - the 842AC configuration, both models can be modified for spindles stop - the 832SAC and 842SAC configuration.

mori-say 632AC
Multispindle automatic lathe MORI-SAY TM620CNC
  • Number of spindles: 6
  • Maximum diameter of bar : 20/24 mm
  • Max. length of bar feeding: 100 mm
  • Spindle speed: max 6 000 rpm
More Informations

Six-spindle fully CNC-controlled automatic lathe of high accuracy, rigidity and speed. It is designed for mass and serial production of precision components from bar material up to a maximum of ø 20 mm  (ø 24 mm).
High productivity is enabled by a total of 21 CNC-controlled axes and another 13 available for special accessories and 6 spindles with a maximum speed of 6,000 rpm. Spindle drum indexing: 0.7 s. The Fanuc i30-B plus control system and two operator panels ensure comfortable and friendly machine operation.

mori-say 620CNC
Multispindle automatic lathe MORI-SAY TMZ518CNC
  • No. of spindles: 5
  • Max. diameter of bar: 18 mm
  • Max. length of feeding: 90 mm
  • Spindle speed: max 8000 rpm
More Informations

Basic configuration with 5 cross saddles, TM configuration – up to 24 controlled axes and synchronous speeds of spindles, TMZ configuration – up to 30 controlled axes and independent speeds of the spindles, integrated automatic bar magazine, control system and motors: Fanuc.

mori-say 620AC
Multispindle automatic lathe MORI-SAY TMZ642CNC
  • No. of spindles: 6
  • Max. diameter of bar: 42 mm
  • Max. length of feeding: 150 mm
  • Spindle speed: max 5000 rpm
More informations

Basic configuration with 5 cross saddles, 6 longitudinal saddles and 1 parting-off slide, up to 44 numerically controlled axes, independent speeds of the spindles, Siemens Sinumerik 840D sl control system, SINAMICS S120 motors.

TMZ642CNC
Multispindle automatic Lathes MORI-SAY TMZ842CNC
  • No. of spindles: 8
  • Max. diameter of bar: 48 mm
  • Max. length of feeding: 180 mm
  • Spindle speed: max 4500 rpm
More informations

Basic configuration with 7 cross saddles, 8 longitudinal saddles and 1 parting-off slide, up to 56 numerically controlled axes, independent speeds of the spindles, Siemens Sinumerik 840D sl control system, SINAMICS S120 motors.

mori-say 842CNC
Multispindle automatic Lathes MORI-SAY TMZ867CNC
  • No. of spindles: 8
  • Max. diameter of bar: 67 mm
  • Max. length of feeding: 200 mm
  • Spindle speed: max 2500 rpm
More informations

Basic configuration with 7 cross saddles, 8 longitudinal saddles and 1 parting-off slide, up to 62 numerically controlled axes, independent speeds of the spindles, Siemens Sinumerik 840D sl control system, SINAMICS S120 motors.

mori-say 620AC
MANURHIN K’MX 413
  • Max bar ⌀ 13mm or ⌀16 mm
  • 12.000 rpm on both spindles
  • Strong spindle motor
  • Two axial tools in cut at the same time
  • Number of tools in cut: 2 axial
More informations

THE MANURHIN K’MX 413 is designed for productive machining of parts for bars with a maximum diameter of 13 m or 16mm

manurhin-kmx 413
MANURHIN K’MX 432
  • Max bar ⌀ 32mm or ⌀36 mm
  • 10.000 rpm on both spindles
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2 axial
More informations

THE MANURHIN K’MX 432 is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

manurhin-kmx 432
MANURHIN K’MX 520
  • Max. diameter of bar material 20 mm
  • 12,000 rpm on both spindles
  • 8,400 rpm of driven tools
  • Main spindle power 3.7/5.5 kW
  • Headstock stroke 210 mm
  • Number of tools in the cut at the same time: 2
More informations

MANURHIN K'MX 520 is designed for productive machining of parts made of bars with a maximum diameter of 20 mm.

K'MX 520
MANURHIN K’MX 532 TREND
  • Max bar ⌀ 32mm or ⌀36 mm
  • 10.000 rpm on both spindles
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
More informations

THE MANURHIN K’MX 532 TREND is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

manurhin-kmx 532
MANURHIN K'MX 620
  • Max. diameter of bar material 20 mm
  • 12,000 rpm on both spindles
  • 8,400 rpm of driven tools
  • Main spindle power 3.7/5.5 kW
  • Headstock stroke 210 mm
  • Number of tools in the cut at the same time: 2
More informations

MANURHIN K'MX 620 is designed for productive machining of parts made of bars with a maximum diameter of 20 mm.

K'MX 620
MANURHIN K’MX 632 DUO
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
  • Two tools together on main spindle!
More informations

THE MANURHIN K’MX 632 DUO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

manurhin-kmx 632
MANURHIN K’MX 732 EVO
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Number of tools in cut: 3
  • Main spindle power 15/25 kW
  • Most powerful swiss automatic lathe!
  • Supported by software ESPRIT CAM (download below)
More informations

THE MANURHIN K’MX 732 EVO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

manurhin-kmx 732
MANURHIN K’MX 816 CLEVER
  • Max bar ⌀ 16mm or ⌀20 mm
  • 12.000 rpm on both spindles
  • B-axis (optional)
  • Number of tools in cut: 4
  • 32 tool positions
More informations

THE MANURHIN K’MX 816 CLEVER is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.

manurhin-kmx 816
MANURHIN K’MX 1032
  • Max bar ⌀ 32 mm or ⌀ 36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 4
More informations

THE MANURHIN K’MX 1032 is delivered in two versions –one for bars Ø 32 and one for bars Ø 36 mm (bar preparation is needed).

manurhin-kmx 1032

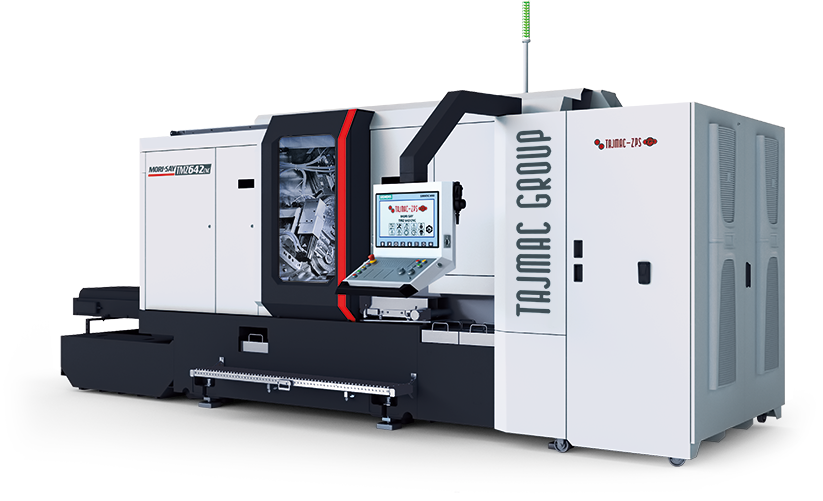

TMZ642CNC

TMZ642CNC

Multispindle automatic lathe MORI-SAY TMZ642CNC

The innovative technical solutions developed by our engineers allow to control independently the speed of each spindle and to calibrate the power of each AC spindle motor in accordance with the requirements of the specific machining operations performed by each customer.

At the same time, the absolute independence of each spindle makes possible to perform any type of machining, including machining operations requiring spindle stopping or C-axis spindle orientation, thus making the TMZ a real and complete turning and milling centre. In order to make the programming easier has been created the ZPS’ own technological software TMis.

  • No. of spindles: 6
  • Max. diameter of bar: 42 mm
  • Max. length of feeding: 150 mm
  • Spindle speed: max 5000 rpm

Parameters

Technical parameters MORI-SAY TMZ642CNC
number of spindles 6
max. diameter of bar 48 mm
max.internal diameter clamping pipe 53 mm
max. length of feeding 180 mm
revolutions of spindles 5 000 min-1
nominal output of spindle engine 7 kW
nominal torque of spindle 66,8 Nm
dead time 0,7 - 1 s
number of longitudinal saddles 6
number of cross saddles 5

Brochure MORI-SAY TMZ642CNC

Don't hesitate to contact us if you are interested in this machine.
