Production Program

The production program of TAJMAC-ZPS is composed of Swiss-type lathes and multispindle automatic lathes, mechanical and CNC. These machines are used in the most demanding industries in all markets around the world and have gained a very good reputation with their high-level technical parameters, accuracy and reliability.

Multispindle Automatic Lathes MORI-SAY

Mechanical machines of AC series
Traditional concept of cam-controlled turning lathes for large-lot and mass production. The basic configuration is with 6 or 8 spindles, with controlled motors of spindle drives and feeds.
Numerically controlled machines of TMZ series
Fully CNC controlled machines in 5, 6 and 8 spindles configuration. Suitable for serial production of technologically highly demanding workpieces.

Swiss-type Lathes MANURHIN K’MX

We introduce a highly productive Swiss-type Lathes for manufacturing of round bars up to diameter of 32 mm (36 mm) as well as square and hexagon bars. These automatic lathes with sliding headstock expanded the production program of TAJMAC-ZPS a. s. after MANURHIN K’MX acquisition in 2004 and transfer of production from French Mulhouse into the city of Zlín.

  • More powerful turning!
  • More powerful milling!
  • Higher productivity!
Multispindle automatic Lathes MORI-SAY 620AC
  • No. of spindles: 6
  • Max. diameter of bar:20 mm
  • Max. length of feeding: 100 mm
  • Spindle speed: max 6000 rpm
More informations

Basic configuration with 6 transversal slides, 6 longitudinal slides, and 4 cross slides with conicity setting and central block with independent motion. Siemens Simodrive motors with continuous spindle speed and independent feed, PLC Simatic 7-300.

Multispindle automatic Lathes MORI-SAY 632AC 642AC
  • No. of spindles: 6
  • Max. diameter of bar: 32 /42 mm
  • Max. length of feeding: 125 mm
  • Spindle speed: max 4250 rpm
More informations

Basic configuration with six transversal slides, six longitudinal slides, four cross slides with conicity setting. Four safety clutch for overload, high thermal and dynamic stability, bar machining up to 32 mm diameter (42 mm for 642).
SIEMENS Simodrive motors with continuous spindle speed and feed, PLC Siemens SIMATIC S 7-300.

Multispindle automatic Lathes MORI-SAY 657AC, 667AC
  • No. of spindles: 6
  • Max. diameter of bar: 57 /67 mm
  • Max. length of feeding: 160 mm
  • Spindle speed: max 3200 rpm
More informations

Basic configuration with 6 transversal slides, six longitudinal slides, four cross slides with conicity setting. Four safety clutch for overload, high thermal and dynamic stability, bar machining up to 57mm diameters (67 mm for 667). SIEMENS Simodrive motors with continuous spindle speed and feed, PLC Siemens SIMATC S 7-300.

Multispindle automatic Lathes MORI-SAY 832AC, 842AC
  • No. of spindles: 8
  • Max. diameter of bar: 32 /42 mm
  • Max. length of feeding: 125 mm
  • Spindle speed: max 3750 rpm
More informations

Basic configuration with eight transversal slides, eight longitudinal slides, four cross slides with conicity setting. Four safety clutchs for overload, high thermal and dynamic stability, bar machining up to 32 mm diameters (42 mm for 642).
Possibility of second process machining on collet or chuck automatique up to 130 mm diameters.
SIEMENS Simodrive motors with continuous spindle speed and feed, PLC Siemens SIMATC S 7-300

Multispindle automatic Lathes MORI-SAY TMZ642CNC
  • No. of spindles: 6
  • Max. diameter of bar: 42 mm
  • Max. length of feeding: 150 mm
  • Spindle speed: max 5000 rpm
More informations

Basic configuration with five cross slides, six longitudinal slides and one radial parting-off slides. Up to 44 controlled axis, independent spindle revolutions.
Siemens control system Sinumerik SOLUTION LINE.

Multispindle automatic Lathes MORI-SAY TMZ842CNC
  • No. of spindles: 8
  • Max. diameter of bar: 48 mm
  • Max. length of feeding: 180 mm
  • Spindle speed: max 4500 rpm
More informations

Basic configuration with 7 cross slides, 8 longitudinal slides and one parting-off slides. Up to 62 controlled axes, independent spindle revolutions.
Siemens control system Sinumerik SOLUTION LINE.

Multispindle automatic Lathes MORI-SAY TMZ867CNC
  • No. of spindles: 8
  • Max. diameter of bar: 67 mm
  • Max. length of feeding: 200 mm
  • Spindle speed: max 2500 rpm
More informations

Basic configuration with 7 cross slides, 8 longitudinal slides and one parting-off slides. Up to 62 controlled axes, independent spindle revolutions.
Siemens control system Sinumerik SOLUTION LINE.

MANURHIN K’MX 413
  • Max bar ⌀ 13mm or ⌀16 mm
  • 12.000 rpm on both spindles
  • Strong spindle motor
  • Two axial tools in cut at the same time
  • Number of tools in cut: 2 axial
More informations

THE MANURHIN K’MX 413 is designed for productive machining of parts for bars with a maximum diameter of 13 m or 16mm

MANURHIN K’MX 432
  • Max bar ⌀ 32mm or ⌀36 mm
  • 10.000 rpm on both spindles
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2 axial
More informations

THE MANURHIN K’MX 432 is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 532 TREND
  • Max bar ⌀ 32mm or ⌀36 mm
  • 10.000 rpm on both spindles
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
More informations

THE MANURHIN K’MX 532 TREND is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 632
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
  • Excellent for long drilling !
More informations

THE MANURHIN K’MX 632 is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 632 DUO
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
  • Two tools together on main spindle!
More informations

THE MANURHIN K’MX 632 DUO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 732 EVO
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Number of tools in cut: 3
  • Main spindle power 15/25 kW
  • Most powerful swiss automatic lathe!
  • Supported by software ESPRIT CAM (download below)
More informations

THE MANURHIN K’MX 732 EVO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 816 CLEVER
  • Max bar ⌀ 16mm or ⌀20 mm
  • 12.000 rpm on both spindles
  • B-axis (optional)
  • Number of tools in cut: 4
  • 32 tool positions
More informations

THE MANURHIN K’MX 816 CLEVER is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.

MANURHIN K’MX 916 CLEVER
  • Max bar ⌀ 16mm or ⌀20 mm
  • 12.000 rpm on both spindles
  • B axis
  • Turret with Z axis feed
  • Number of tools in cut: 4
More informations

The MANURHIN K’MX 916 CLEVER  is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.

MANURHIN K’MX SWING
  • Max bar ⌀ 26 mm or ⌀ 32 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 4
  • Programming software K´MX Plus
More informations

The MANURHIN K’MX SWING we deliver in version 1026 for Ø 26 mm bars or 1032 for Ø 32 mm bars (bar end  adjustment is needed).

K’MX 816 CLEVER

K’MX 816 CLEVER

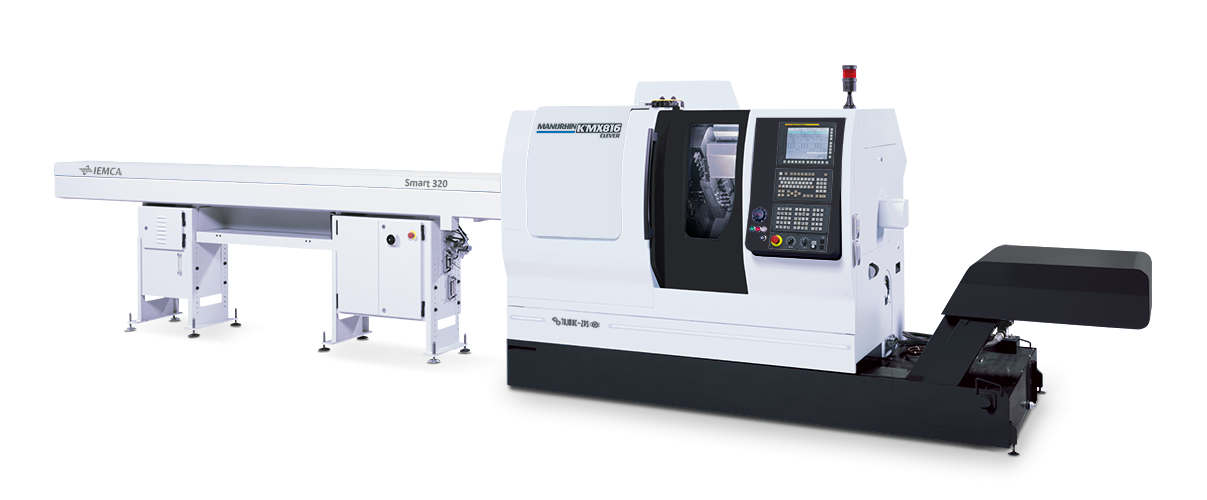

Swiss-type Lathes MANURHIN K'MX 816 CLEVER

THE MANURHIN K’MX 816 CLEVER is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.

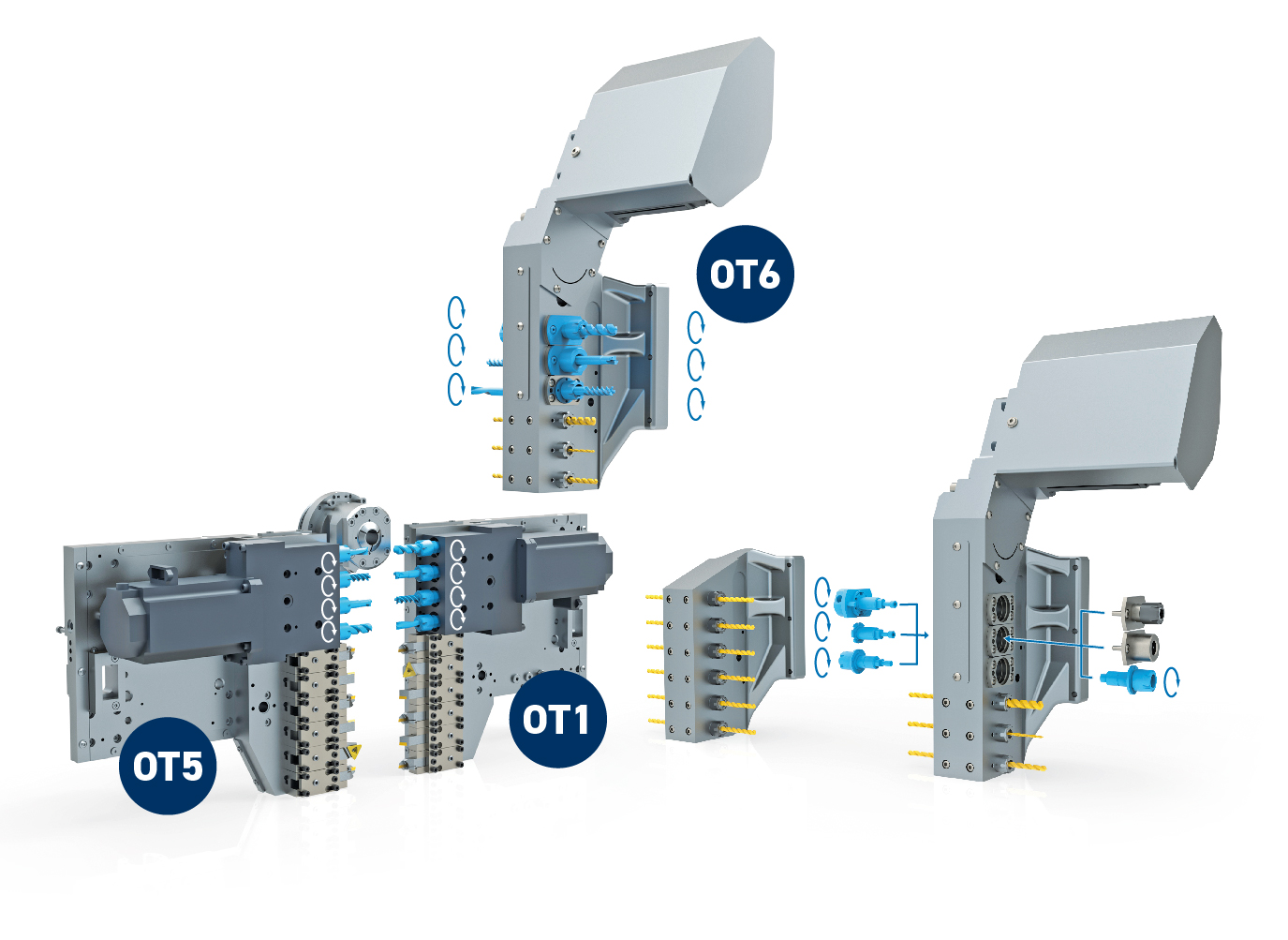

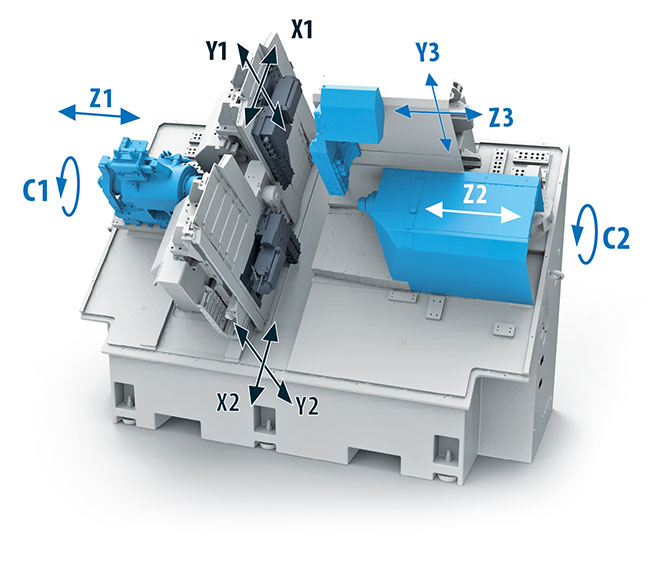

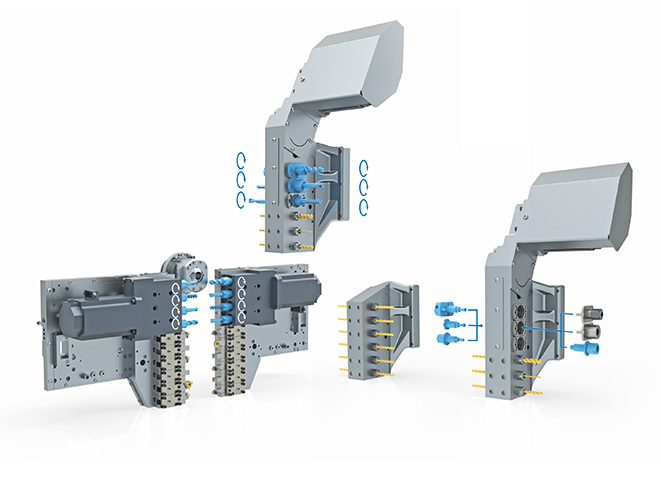

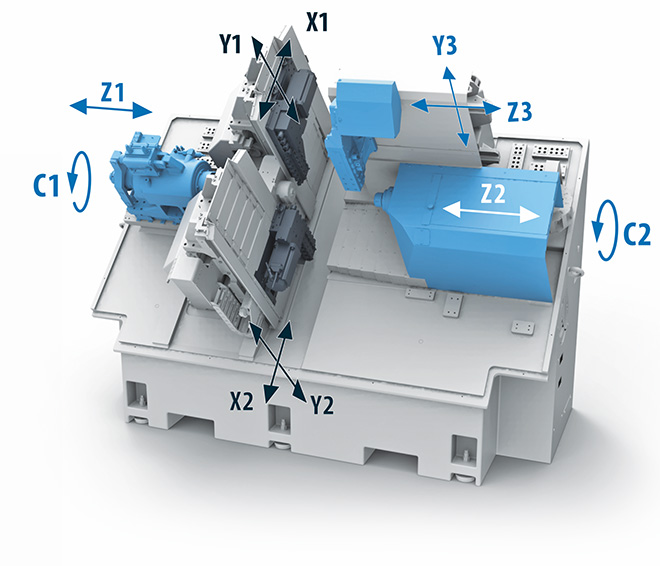

The machine comes standard with two electro spindles and a rotary guide bush that is synchronized by pulleys and belts from the main spindle. Eight linear CNC axes (X1, X2, Y1, Y2, Y3, Z1, Z2, Z3) and two rotary axes (C1, C2) enable the machine to produce parts ranging in complexity. The construction solution enables the use of 4 tools at the same time..

  • Max bar ⌀ 16mm or ⌀20 mm
  • 12.000 rpm on both spindles
  • B-axis (optional)
  • Number of tools in cut: 4
  • 32 tool positions

Parameters

Specifications
Max. diameter of bar stock Ø 16 (20) mm
Spindle bore Ø 21 (23) mm
Spindle power kW 100% / 30min. - main 3,7 / 5,5 kW
Spindle power kW 100% / 30min. - counter 3,7 / 5,5 kW
Spindle max. speed rpm - main 12 000 min-1
Spindle max. speed rpm - counter 12 000 min-1
Spindle stroke Z1 mm 220 mm
Number of CNC axes 8 + 2
Programming channels 3
Tools in cut at the same time max 4
Live tools power 1 kW



+
+
+
+
+
+

Brochure K'MX 816 CLEVER
Production program MANURHIN K'MX

Don't hesitate to contact us if you are interested in this machine.
