TAJMAC Group high-performance machining centres, Swiss-type Lathes and multispindle automatic machines CNC
×
Production Program

The production program of TAJMAC-ZPS is composed of Swiss-type lathes and multispindle automatic lathes, mechanical and CNC. These machines are used in the most demanding industries in all markets around the world and have gained a very good reputation with their high-level technical parameters, accuracy and reliability.

Multispindle Automatic Lathes MORI-SAY

Mechanical machines of AC series
Traditional concept of cam-controlled turning lathes for large-lot and mass production. The basic configuration is with 6 or 8 spindles, with controlled motors of spindle drives and feeds.
Numerically controlled machines of TMZ series
Fully CNC controlled machines in 5, 6 and 8 spindles configuration. Suitable for serial production of technologically highly demanding workpieces.

Swiss-type Lathes MANURHIN K’MX

We introduce a highly productive Swiss-type Lathes for manufacturing of round bars up to diameter of 32 mm (36 mm) as well as square and hexagon bars. These automatic lathes with sliding headstock expanded the production program of TAJMAC-ZPS a. s. after MANURHIN K’MX acquisition in 2004 and transfer of production from French Mulhouse into the city of Zlín.

  • More powerful turning!
  • More powerful milling!
  • Higher productivity!
Multispindle automatic Lathes MORI-SAY 620AC
  • No. of spindles: 6
  • Max. diameter of bar:20 mm
  • Max. length of feeding: 100 mm
  • Spindle speed: max 6000 rpm
More informations

Basic configuration with 6 transversal slides, 6 longitudinal slides, and 4 cross slides with conicity setting and central block with independent motion. Siemens Simodrive motors with continuous spindle speed and independent feed, PLC Simatic 7-300.

Multispindle automatic lathe MORI-SAY TM620CNC
  • Number of spindles: 6
  • Maximum diameter of bar : 20/24 mm
  • Max. length of bar feeding: 100 mm
  • Spindle speed: max 6 000 rpm
More Informations

Six-spindle fully CNC-controlled automatic lathe of high accuracy, rigidity and speed. It is designed for mass and serial production of precision components from bar material up to a maximum of ø 20 mm  (ø 24 mm).
High productivity is enabled by a total of 21 CNC-controlled axes and another 13 available for special accessories and 6 spindles with a maximum speed of 6,000 rpm. Spindle drum indexing: 0.7 s. The Fanuc i30-B plus control system and two operator panels ensure comfortable and friendly machine operation.

Multispindle automatic lathe MORI-SAY TMZ518CNC
  • No. of spindles: 5
  • Max. diameter of bar: 18 mm
  • Max. length of feeding: 90 mm
  • Spindle speed: max 8000 rpm
More Informations

Basic configuration with 5 cross saddles, TM configuration – up to 24 controlled axes and synchronous speeds of spindles, TMZ configuration – up to 30 controlled axes and independent speeds of the spindles, integrated automatic bar magazine, control system and motors: Fanuc.

Multispindle automatic Lathes MORI-SAY 632AC 642AC
  • No. of spindles: 6
  • Max. diameter of bar: 32 /42 mm
  • Max. length of feeding: 125 mm
  • Spindle speed: max 4250 rpm
More informations

Basic configuration with six transversal slides, six longitudinal slides, four cross slides with conicity setting. Four safety clutch for overload, high thermal and dynamic stability, bar machining up to 32 mm diameter (42 mm for 642).
SIEMENS Simodrive motors with continuous spindle speed and feed, PLC Siemens SIMATIC S 7-300.

Multispindle automatic Lathes MORI-SAY 657AC, 667AC
  • No. of spindles: 6
  • Max. diameter of bar: 57 /67 mm
  • Max. length of feeding: 160 mm
  • Spindle speed: max 3200 rpm
More informations

Basic configuration with 6 transversal slides, six longitudinal slides, four cross slides with conicity setting. Four safety clutch for overload, high thermal and dynamic stability, bar machining up to 57mm diameters (67 mm for 667). SIEMENS Simodrive motors with continuous spindle speed and feed, PLC Siemens SIMATC S 7-300.

Multispindle automatic Lathes MORI-SAY 832AC, 842AC
  • No. of spindles: 8
  • Max. diameter of bar: 32 /42 mm
  • Max. length of feeding: 125 mm
  • Spindle speed: max 3750 rpm
More informations

Basic configuration with eight transversal slides, eight longitudinal slides, four cross slides with conicity setting. Four safety clutchs for overload, high thermal and dynamic stability, bar machining up to 32 mm diameters (42 mm for 642).
Possibility of second process machining on collet or chuck automatique up to 130 mm diameters.
SIEMENS Simodrive motors with continuous spindle speed and feed, PLC Siemens SIMATC S 7-300

Multispindle automatic Lathes MORI-SAY TMZ642CNC
  • No. of spindles: 6
  • Max. diameter of bar: 42 mm
  • Max. length of feeding: 150 mm
  • Spindle speed: max 5000 rpm
More informations

Basic configuration with five cross slides, six longitudinal slides and one radial parting-off slides. Up to 44 controlled axis, independent spindle revolutions.
Siemens control system Sinumerik SOLUTION LINE.

Multispindle automatic Lathes MORI-SAY TMZ842CNC
  • No. of spindles: 8
  • Max. diameter of bar: 48 mm
  • Max. length of feeding: 180 mm
  • Spindle speed: max 4500 rpm
More informations

Basic configuration with 7 cross slides, 8 longitudinal slides and one parting-off slides. Up to 62 controlled axes, independent spindle revolutions.
Siemens control system Sinumerik SOLUTION LINE.

Multispindle automatic Lathes MORI-SAY TMZ867CNC
  • No. of spindles: 8
  • Max. diameter of bar: 67 mm
  • Max. length of feeding: 200 mm
  • Spindle speed: max 2500 rpm
More informations

Basic configuration with 7 cross slides, 8 longitudinal slides and one parting-off slides. Up to 62 controlled axes, independent spindle revolutions.
Siemens control system Sinumerik SOLUTION LINE.

MANURHIN K’MX 413
  • Max bar ⌀ 13mm or ⌀16 mm
  • 12.000 rpm on both spindles
  • Strong spindle motor
  • Two axial tools in cut at the same time
  • Number of tools in cut: 2 axial
More informations

THE MANURHIN K’MX 413 is designed for productive machining of parts for bars with a maximum diameter of 13 m or 16mm

MANURHIN K’MX 432
  • Max bar ⌀ 32mm or ⌀36 mm
  • 10.000 rpm on both spindles
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2 axial
More informations

THE MANURHIN K’MX 432 is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 532 TREND
  • Max bar ⌀ 32mm or ⌀36 mm
  • 10.000 rpm on both spindles
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
More informations

THE MANURHIN K’MX 532 TREND is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 632
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
  • Excellent for long drilling !
More informations

THE MANURHIN K’MX 632 is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 632 DUO
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 2
  • Two tools together on main spindle!
More informations

THE MANURHIN K’MX 632 DUO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 732 EVO
  • Max bar ⌀ 32mm or ⌀36 mm
  • Live tools power 2,3 kW
  • Number of tools in cut: 3
  • Main spindle power 15/25 kW
  • Most powerful swiss automatic lathe!
  • Supported by software ESPRIT CAM (download below)
More informations

THE MANURHIN K’MX 732 EVO is designed for productive machining of parts for bars with a maximum diameter of 32 m or 36mm (adjustment of bar end is needed)

MANURHIN K’MX 816 CLEVER
  • Max bar ⌀ 16mm or ⌀20 mm
  • 12.000 rpm on both spindles
  • B-axis (optional)
  • Number of tools in cut: 4
  • 32 tool positions
More informations

THE MANURHIN K’MX 816 CLEVER is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.

MANURHIN K’MX 916 CLEVER
  • Max bar ⌀ 16mm or ⌀20 mm
  • 12.000 rpm on both spindles
  • B axis
  • Turret with Z axis feed
  • Number of tools in cut: 4
More informations

The MANURHIN K’MX 916 CLEVER  is designed for the productive machining of parts for bars of a maximum diameter of either 16mm or 20mm.

MANURHIN K’MX SWING
  • Max bar ⌀ 26 mm or ⌀ 32 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 4
  • Programming software K´MX Plus
More informations

The MANURHIN K’MX SWING we deliver in version 1026 for Ø 26 mm bars or 1032 for Ø 32 mm bars (bar end  adjustment is needed).

MANURHIN K’MX 1032 Icon
  • Max bar ⌀ 32 mm or ⌀ 36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 4
More informations

THE MANURHIN K’MX 1032 is delivered in two versions –one for bars Ø 32 and one for bars Ø 36 mm (bar preparation is needed).

K’MX 1032

K’MX SWING

K’MX SWING

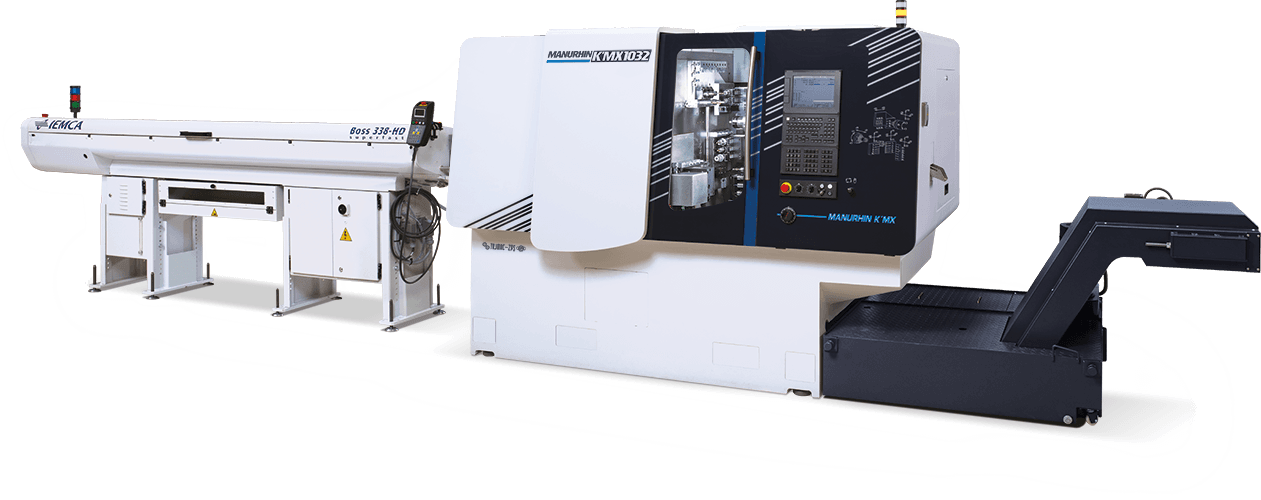

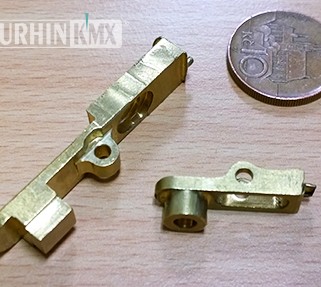

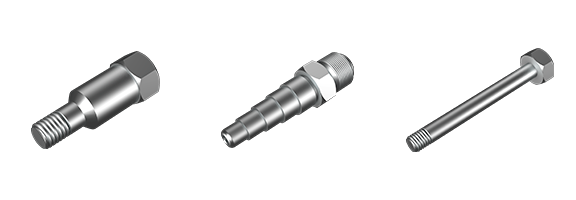

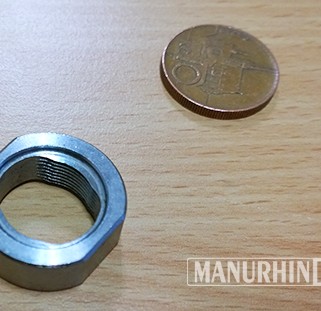

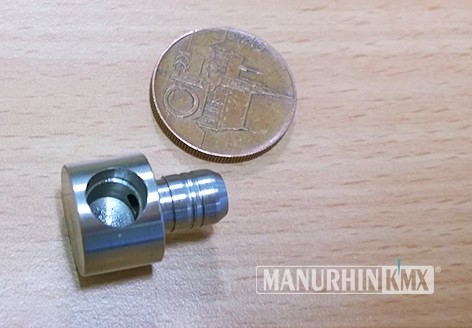

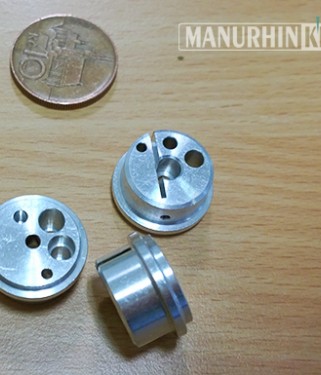

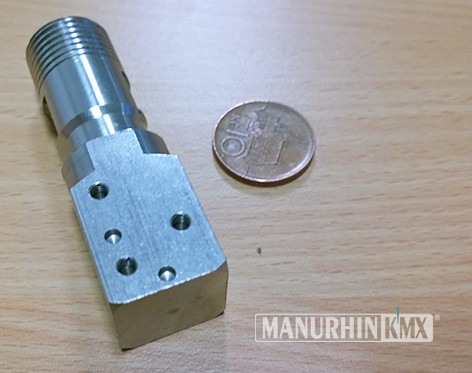

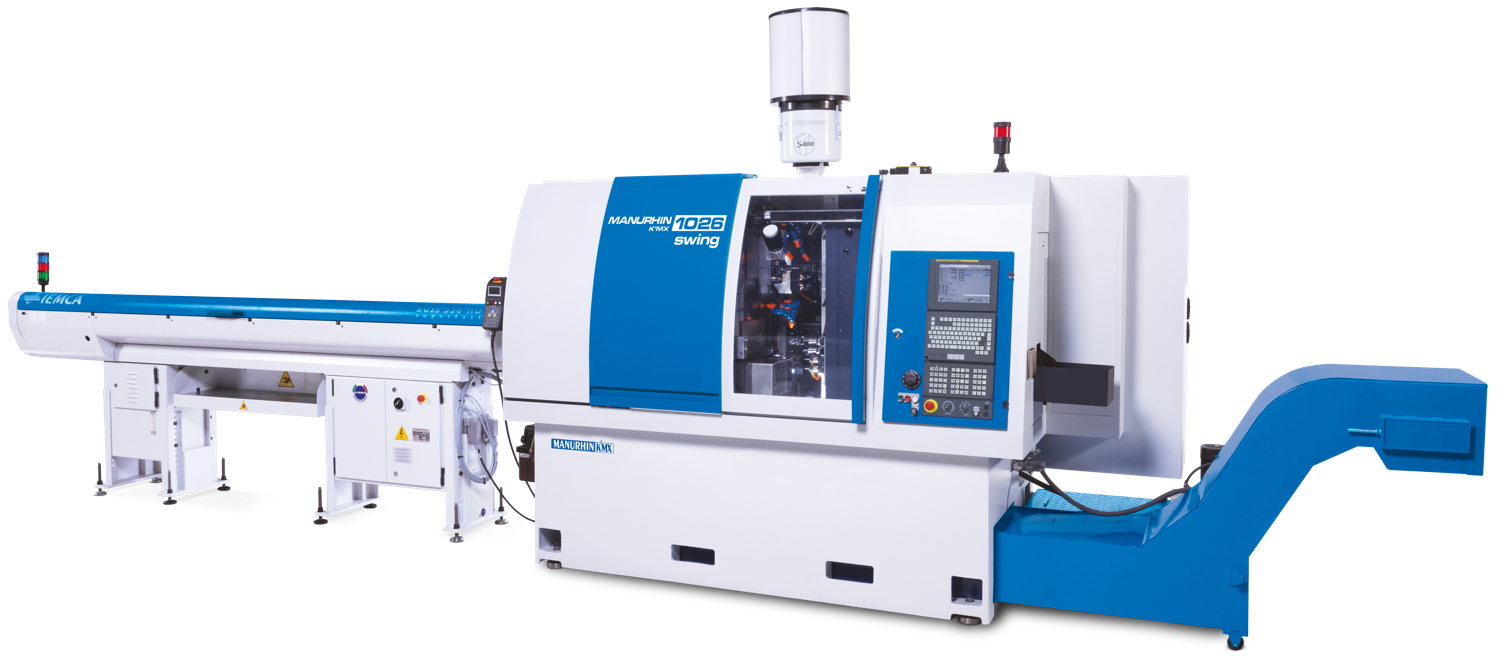

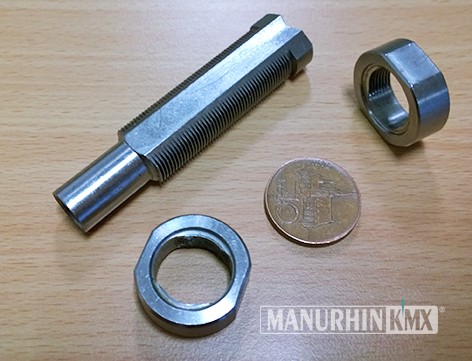

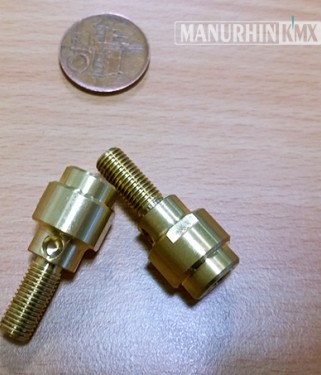

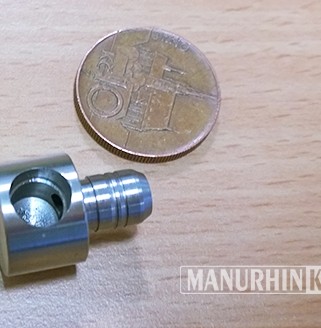

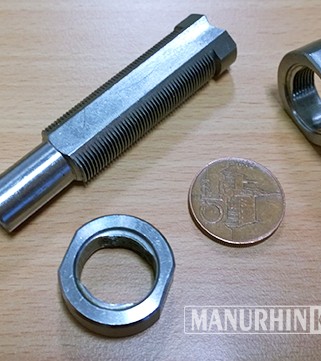

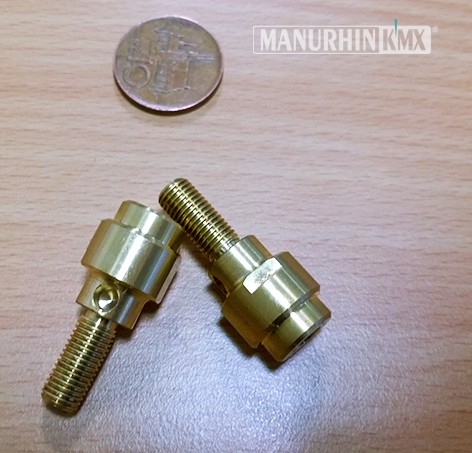

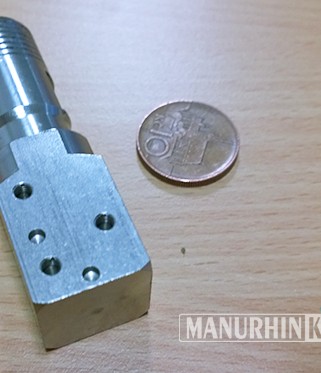

Swiss-type Lathes MANURHIN K’MX SWING

TTHE MANURHIN K’MX 1032 is delivered in two versions – one for bars Ø 32 and one for bars Ø 36 mm (bar preparation is needed).

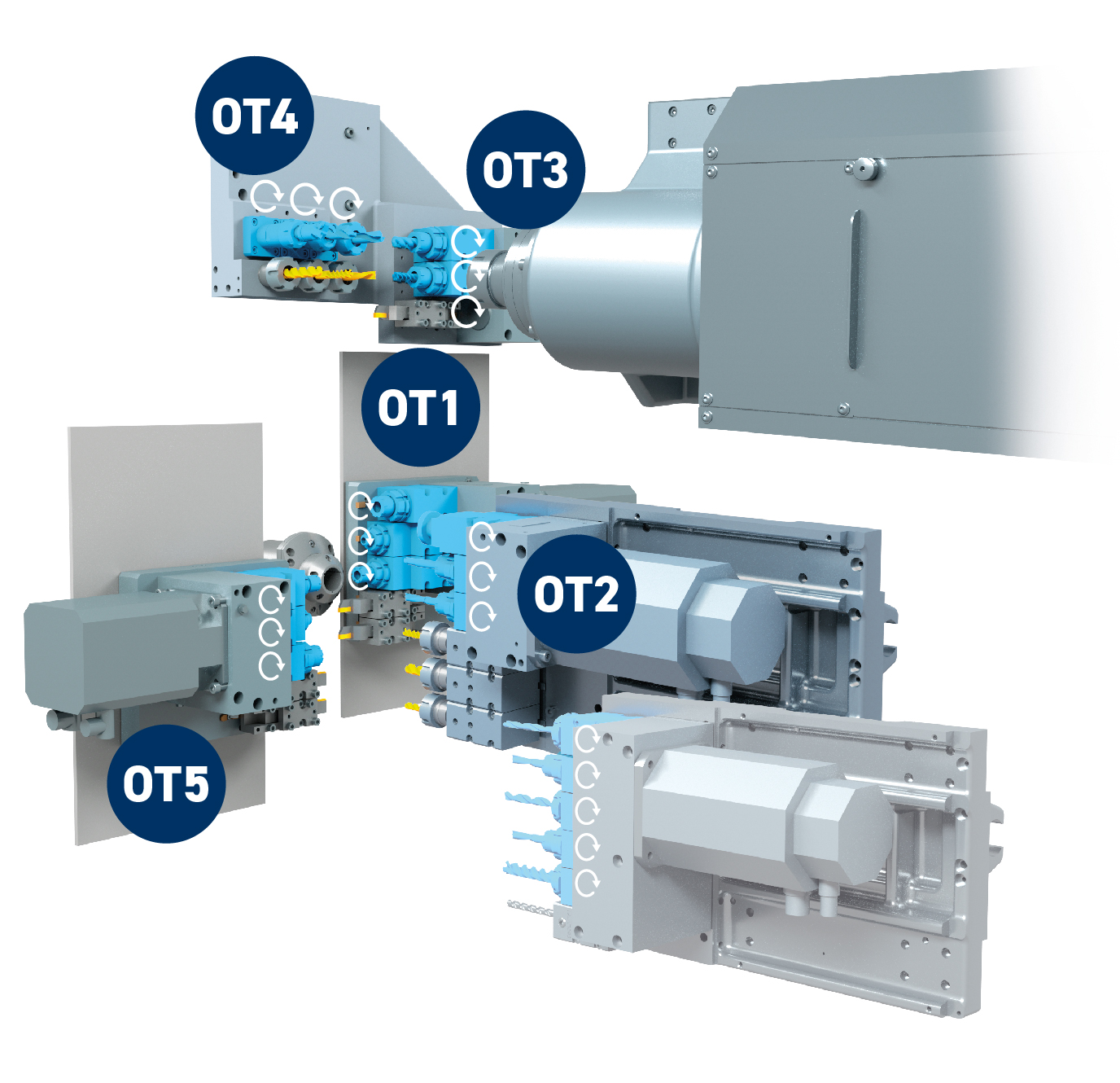

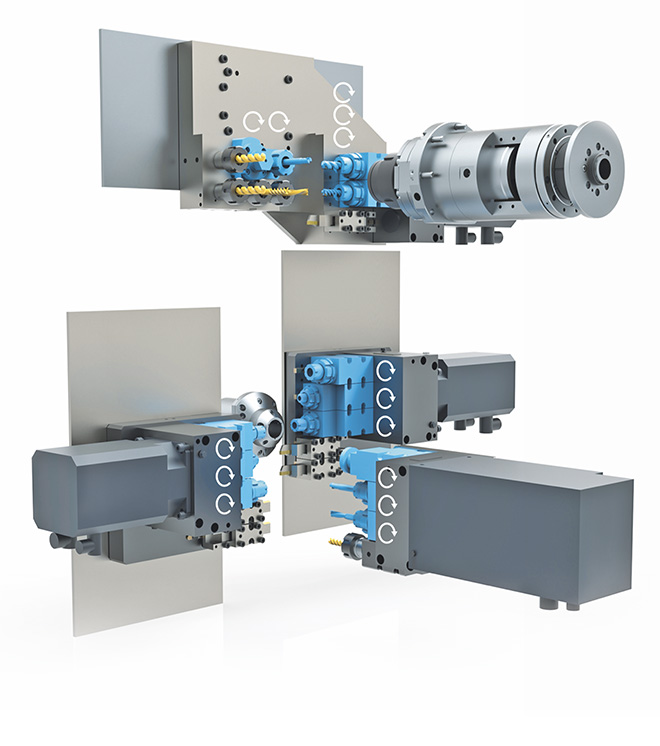

The highlight of the MANURHIN K’MX 1032 is the productivity. Up to 25 tools (including 17 powered tools) can be working simultaneously with 10 independent axes. Tool changes are quick and easy with the compatible tool holder cartridge system. Programming in three channels. The large door opening provides easy access. Controlled by Fanuc 31i.

  • Max bar ⌀ 32 mm or ⌀ 36 mm
  • Live tools power 2,3 kW
  • Live tools torque up to 32 Nm
  • Number of tools in cut: 4

Parameters

Specifications
Max. diameter of bar stock Ø 32 (36) mm
Spindle bore Ø 37 mm
Spindle power kW 100% / 60% - main 15 / 25  kW
Spindle power kW 100% / 30min. - counter 3,7 / 5,5 kW
Spindle max. speed - main 8 000 rpm
Spindle max. speed - counter 10 000 rpm
Spindle stroke mm 410 mm
Number of CNC axes 10 + 2
Programming channels 3
Tools in cut at the same time max 4
Live tools power 2,3 kW

+
+
+
+
+
+
+
+

Brochure K'MX SWING
Production program MANURHIN K'MX

Don't hesitate to contact us if you are interested in this machine.
