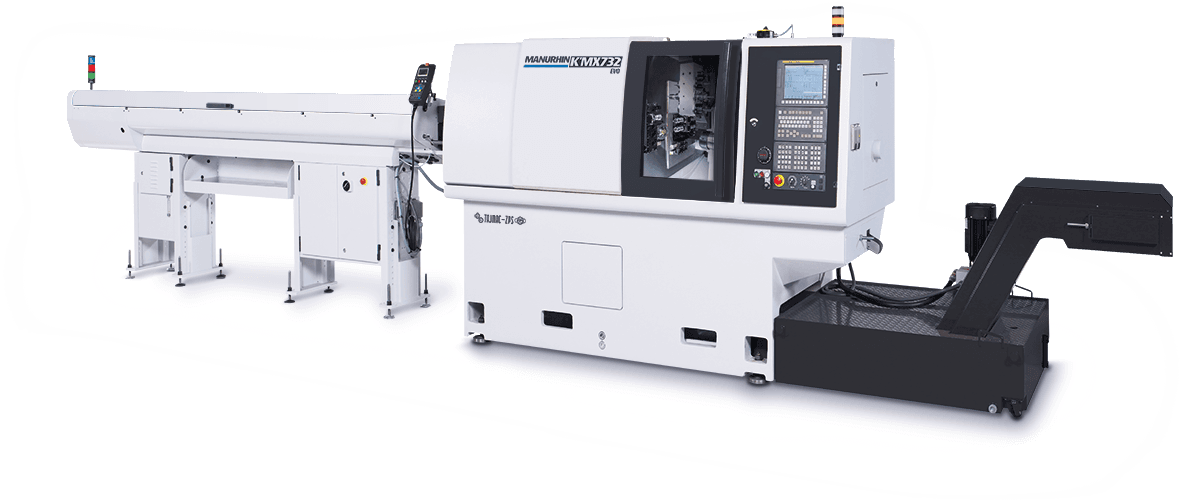

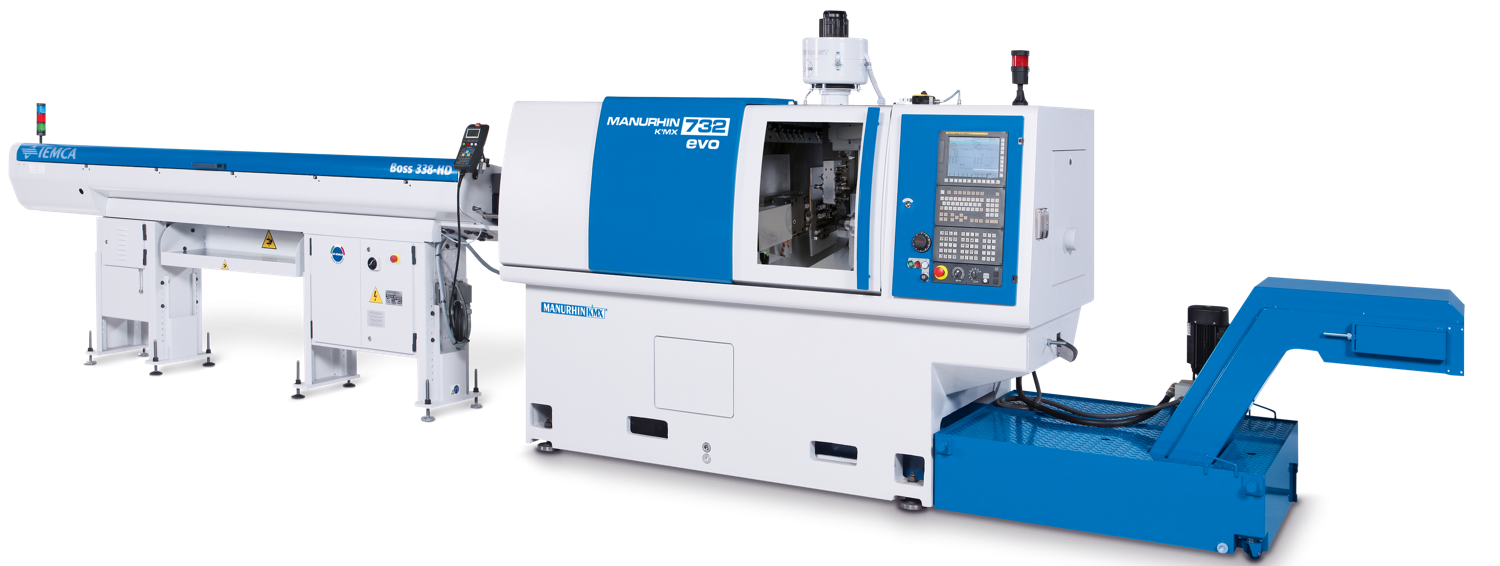

Swiss-type Lathes MANURHIN K’MX 732 EVO

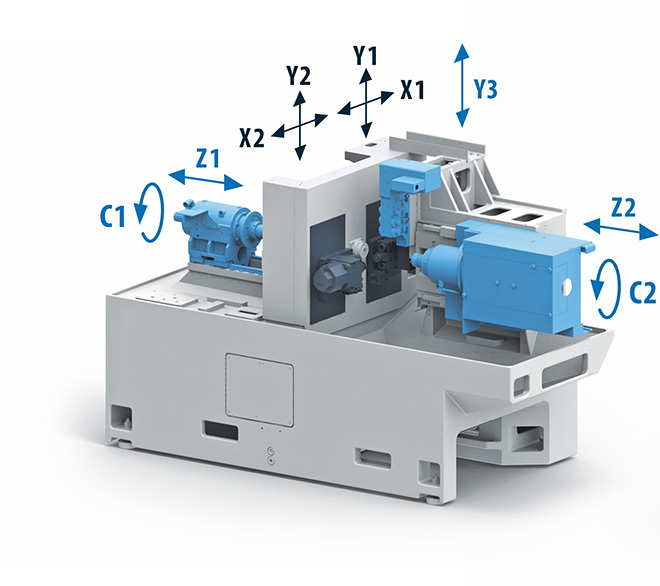

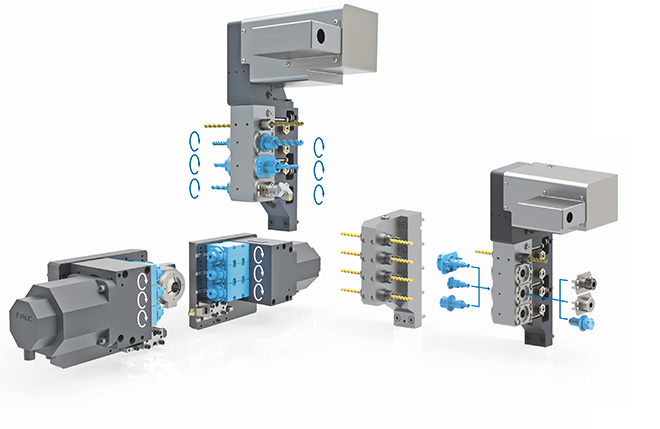

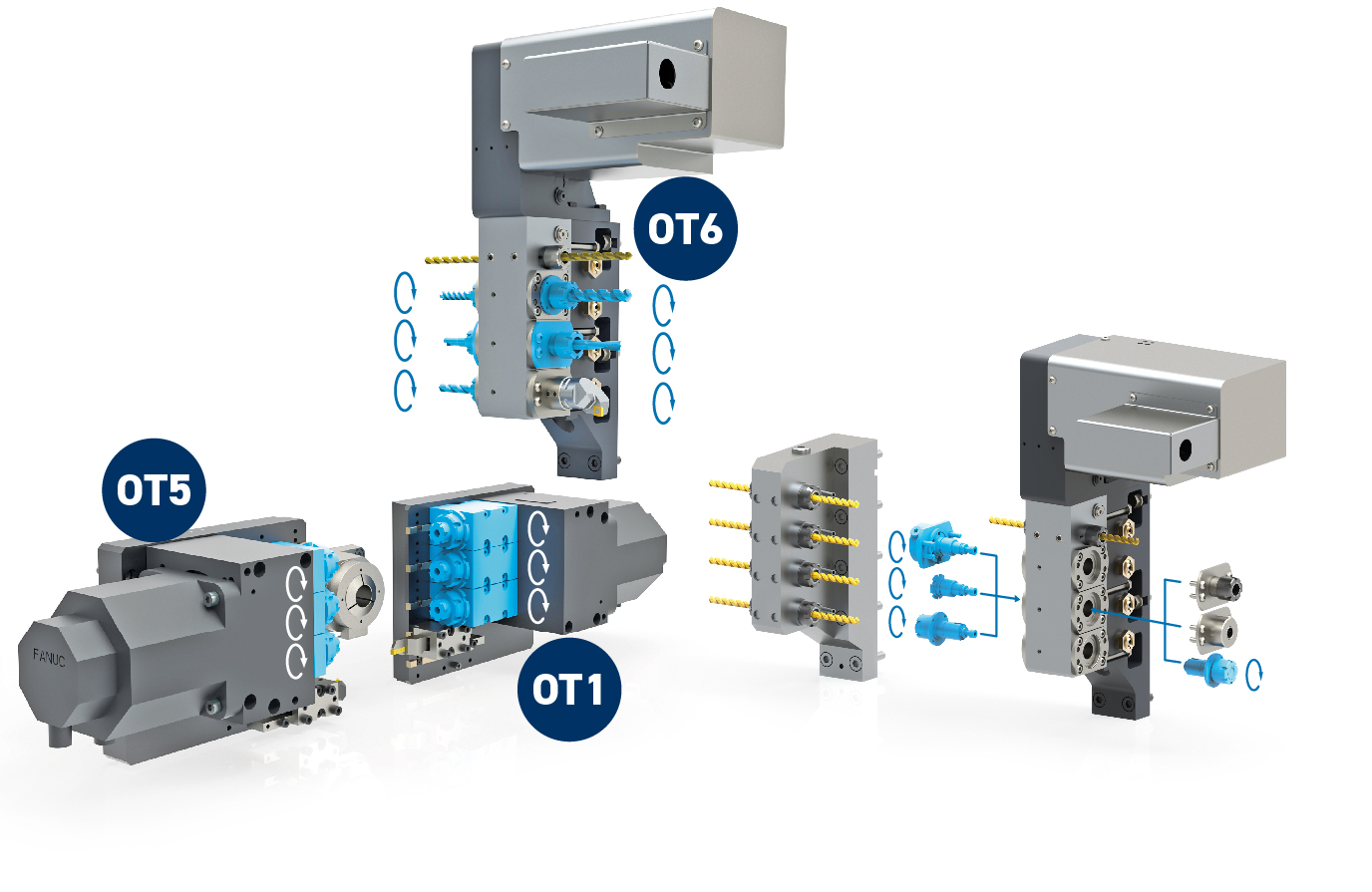

THE MANURHIN K’MX 732 EVO is designed for productive machining of parts for bars with a maximum diameter of 32 mm. The machine comes standard with two electro spindles and with a rotary guide bush synchronized by pulleys and belts from the main spindle. Seven linear CNC axes (X1, X2, Y1, Y2, Y3, Z1, Z2) and two rotary axes (C1, C2) enable the machine to produce parts ranging from very simple to extremely complex. The construction solution and very strong spindle motor enables the use of up to 3 tools at the same time. The machine is very strong when milling, with torque up to 32Nm!
- Max bar ⌀ 32mm or ⌀36 mm
- Live tools power 2,3 kW
- Number of tools in cut: 3
- Main spindle power 15/25 kW
- The most powerfull swiss lathe!
Parameters
| Specifications | |
| Max. diameter of bar stock Ø | 32 (36) mm |
| Spindle bore Ø | 37 mm |
| Spindle power kW 100% / 25% - main | 15 / 25 |
| Spindle power kW 100% / 30min. - counter | 3,7 / 5,5 |
| Spindle max. speed rpm - main | 8 000 min-1 |
| Spindle max. speed rpm - counter | 10 000 min-1 |
| Spindle stroke mm | 410 mm |
| Number of CNC axes | 7 + 2 |
| Programming channels | 2 |
| Tools in cut at the same time max | 3 |
| Live tools power | 2,3 kW |
