MANURHIN K’MX 520
MANURHIN K'MX 520 is designed for productive machining of parts made of bars with a maximum diameter of 20 mm. As the machine is equipped with a continuous B-axis, it is also possible to machine complex parts. The machine comes standard with two electro-spindles with a maximum speed of 12,000 rpm and a stroke of 210 mm.

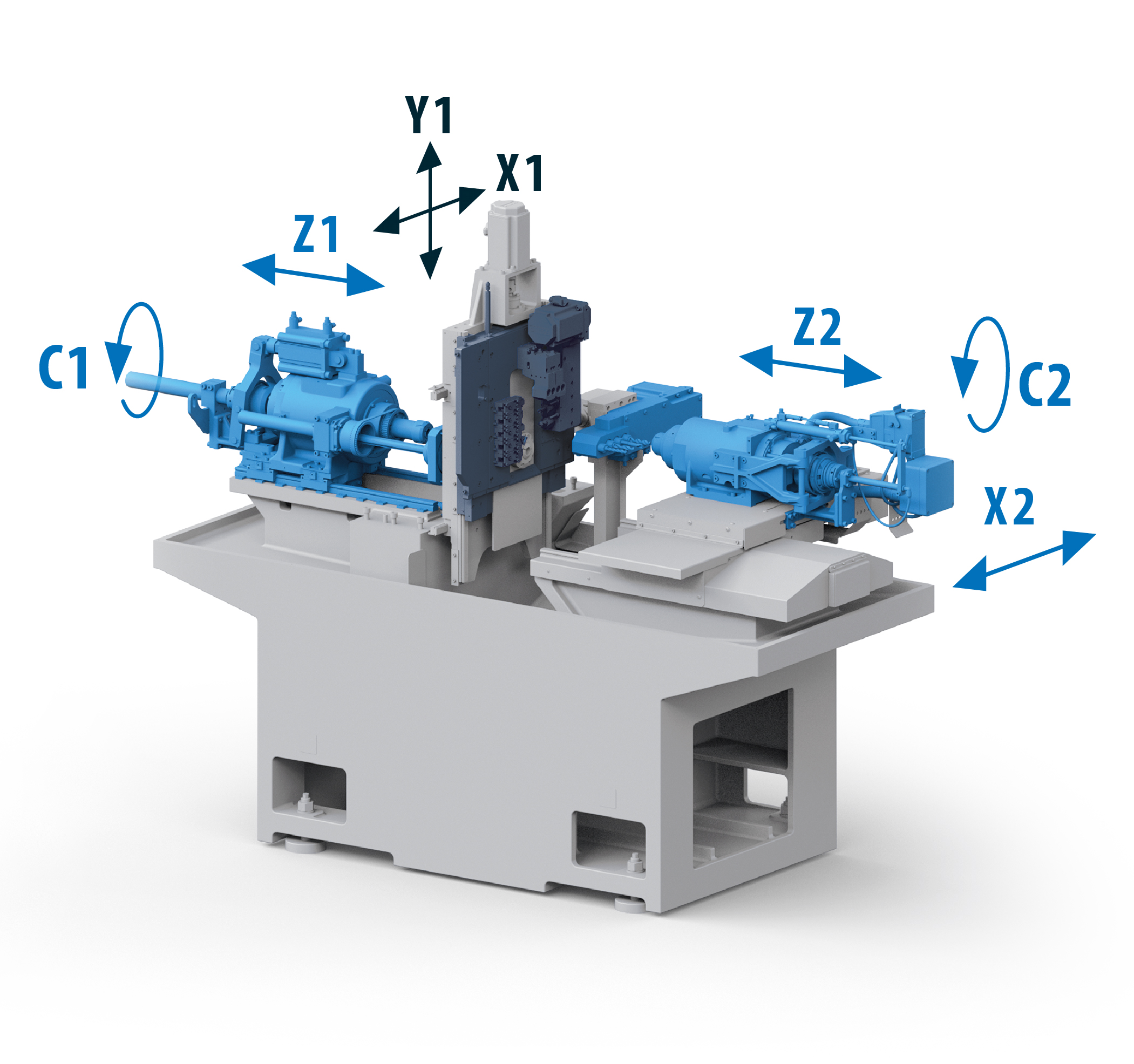

Up to 29 tools can be clamped simultaneously, which guarantees flexibility for different machining operations. The machine provides four linear axes (X1, Y1, Z1, Z2) and two rotary axes (C1, C2). Tool power of 2.2 kW and torque of 8 Nm enable efficient machining of a wide range of materials.
- Max. diameter of bar material 20 mm
- 12,000 rpm on both spindles
- 8,400 rpm of driven tools
- Main spindle power 3.7/5.5 kW
- Headstock stroke 210 mm
- Number of tools in the cut at the same time: 2
Parameters
|
Specifications |
|
| Max. diameter of bar stock Ø | 20 mm |
| Spindle bore Ø | 22 mm |
| Spindle power kW 100% / 30min. - main | 3.7 / 5.5 kW |
| Spindle power kW 100% / 30min. - counter | 2.2 / 3.7 kW |
| Spindle max. speed rpm - main | 12 000 min-1 |
| Spindle max. speed rpm - counter | 12 000 min-1 |
| Spindle stroke | 210 mm |
| Number of CNC axes | 4 + 2 |
| Programming channels | 2 |
| Tools in cut at the same time max | 2 |
| Live tools power | 2.2 kW |
