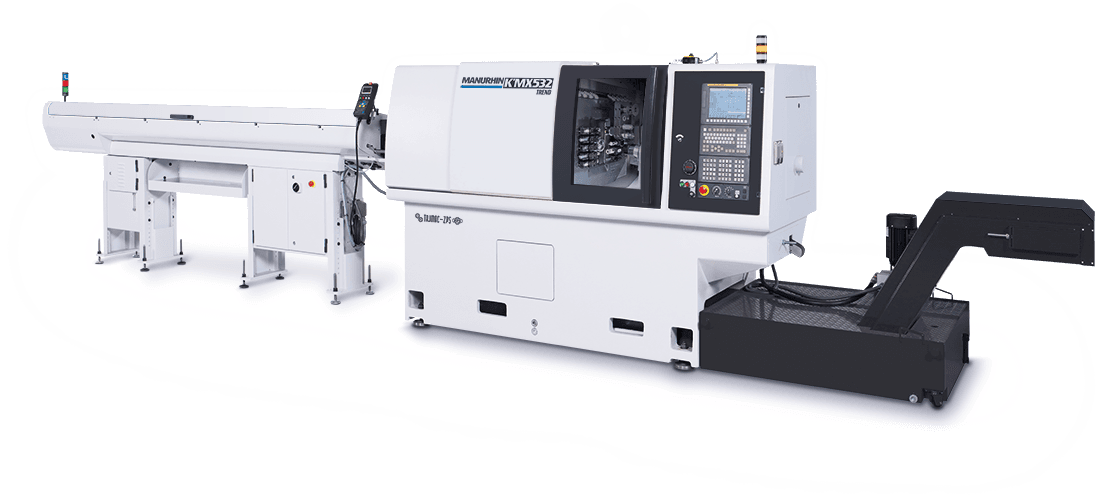

Swiss-type Lathes MANURHIN K'MX 532 TREND
THE MANURHIN K’MX 532 TREND is designed for productive machining of parts for bars with a maximum diameter of 32 mm.

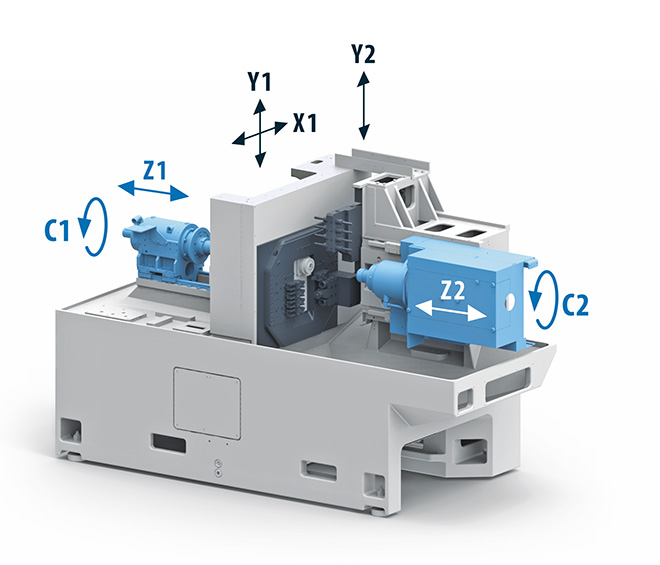

With a spindle bore diameter of 37 mm, no modification of the end of the bar for bar feeder collet is needed. The machine comes standard with two electro spindles, each with a maximum speed of 10,000 rpm and with a rotary guide bush, synchronized by pulleys and belts from the main spindle. Five linear axes (X1, Y1, Y2, Z1, Z2) two rotary axes (C1, C2). The machine is very strong when milling, with torque up to 32Nm!
- Max bar ⌀ 32mm or ⌀36 mm
- 10.000 rpm on both spindles
- Live tools power 2,3 kW
- Live tools torque up to 32 Nm
- Number of tools in cut: 2
Parameters
| Specifications | |
| Max. diameter of bar stock Ø | 32 (36) mm |
| Spindle bore Ø | 37 mm |
| Spindle power kW 100% / 25% - main | 5,5 / 7,5 kW |
| Spindle power kW 100% / 30min. - counter | 3,7 / 5,5 kW |
| Spindle max. speed rpm - main | 10 000 min-1 |
| Spindle max. speed rpm - counter | 10 000 min-1 |
| Spindle stroke mm | 410 mm |
| Number of CNC axes | 5 + 2 |
| Programming channels | 2 |
| Tools in cut at the same time max | 2 |
| Live tools power kW | 2,3 kW |
